Query Expansion

Autosuggest
Keyphrases extraction
Ontologies

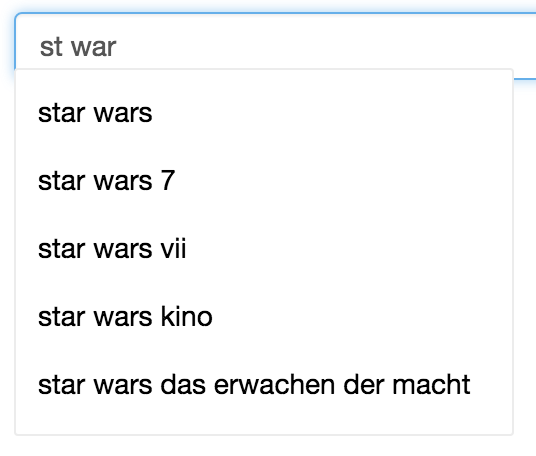

Query Autosuggest

  • Based on historical queries from Analytics
  • Suggest popular or recent topics
  • Beyond keyword suggestion (phrases, query operators)

phrases / operators


Solution

  • Export queries from the past N days (e.g. 365 days)
  • Parse only terms and phrases
  • Measure query popularity (terms frequency)
  • Create a separate Solr Index from the extracted queries
  • Boost / penalize results based on recency

Sample Query


2016-06-02T02:14:05Z,"country:eg AND (site:twitter.com OR site:facebook.com)
\\r\\nAND (\\r\\n\"Al Ahly\" OR \"Zamalek\" OR \"Champions League\" OR
\"EURO\" OR \"Football\" OR \"Mido\" OR \"Hazim Imam\" OR \"Imad Mit3eb\"
OR \"CAF\" OR \"LA LIGA\" OR \"Barcelona\" OR \"Real Madrid\" )"

Sample output


{"query":"insurance","creationDate":1463062131000,"count":1471},
{"query":"shampoo","creationDate":1462911742000,"count":1460},
{"query":"country:it","creationDate":1463145673000,"count":1456},
{"query":"watch","creationDate":1463132426000,"count":1438},
{"query":"for sale","creationDate":1462558474000,"count":1432},
{"query":"baby","creationDate":1462980572000,"count":1428},
{"query":"powder","creationDate":1462906762000,"count":1423},
{"query":"newspaper","creationDate":1463041488000,"count":1411},
{"query":"beauty","creationDate":1462908186000,"count":1375},
{"query":"country:cn","creationDate":1462901757000,"count":1370},
{"query":"spray","creationDate":1462911175000,"count":1365},
{"query":"amazon.co.uk","creationDate":1461691137000,"count":1347},

Solr Index


...
<field name="query" type="string" indexed="true" stored="true"
                        required="true"/>
<field name="query_ngram" type="tquery_ngram" indexed="true"
                        stored="false"/>
...
<copyField source="query" dest="query_ngram"/>
...
<fieldType name="tquery_ngram" class="solr.TextField">
 <analyzer type="index">
  ...
  <filter class="solr.EdgeNGramFilterFactory" minGramSize="2"
                        maxGramSize="10"/>
 </analyzer>
 ...
</fieldType>

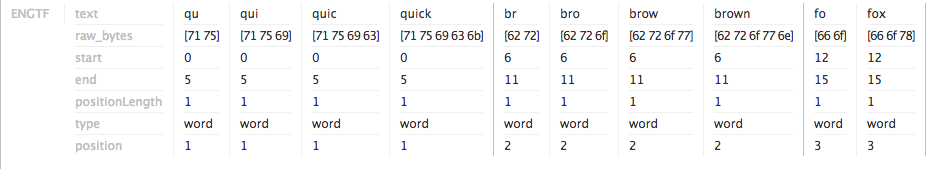

n-grams

The analysis of the phrase: "quick brown fox"

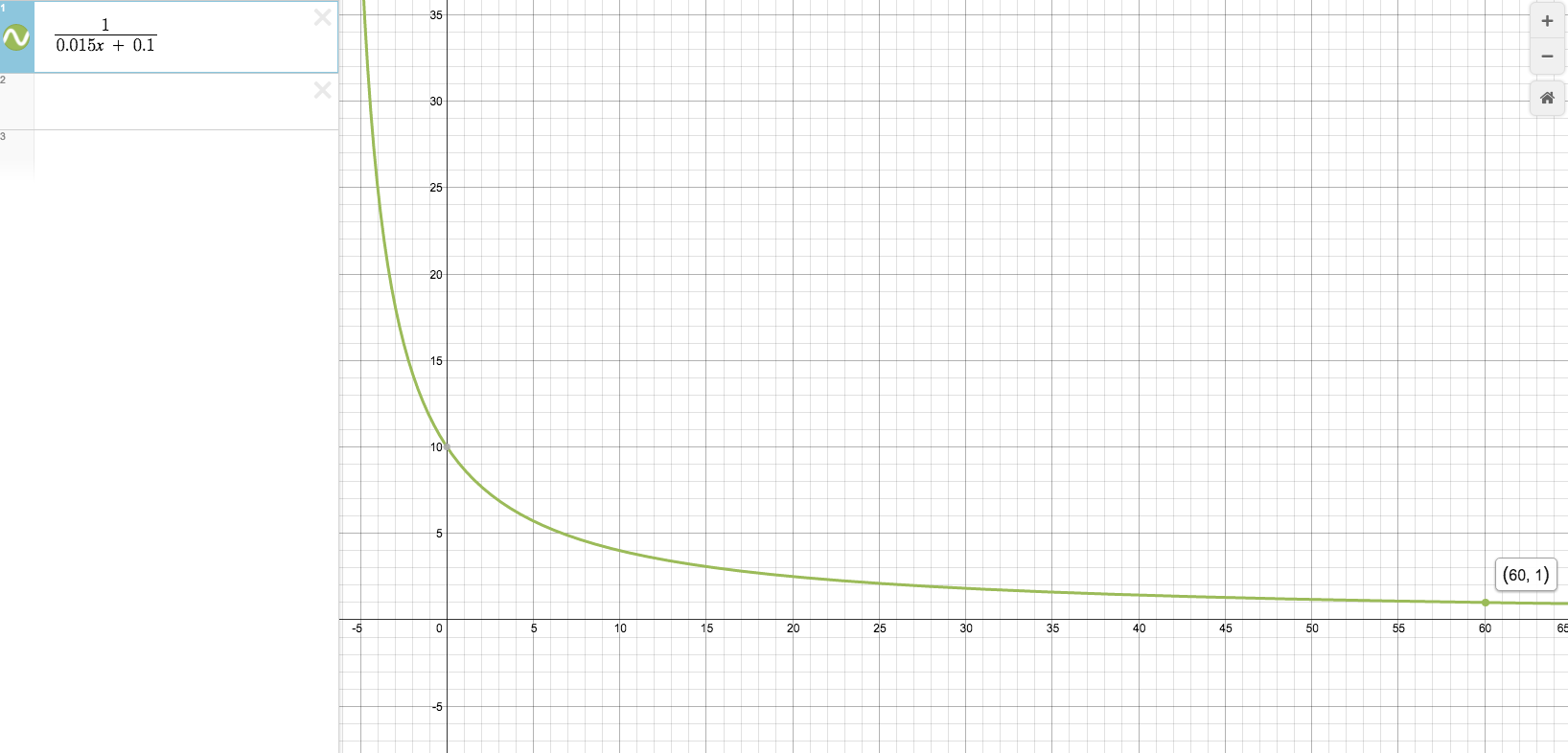

Query Boosting

boost(query) = count(query) * recency_boost(query)

Boost recent / penalize old


DEMO!

Context terms / Keyphrases

Problem

Extract interesting terms and phrases given just a single (brand/product) name

Solution

  1. Get results from the single term query
  2. Build the text corpus
  3. Extract (TF-IDF scored) terms using MoreLikeThis

Grab some data first...

Consume tweets from Gnip Decahose (Kafka topic)

Single terms are not enough 😢

How do we index?

  • Create "pseudo-phrases" with Shingles
  • Store termVectors to speed up MoreLikeThis

<fields>
  ...
  <field name="exact" type="shingle" indexed="true" stored="true"
                        required="true" termVectors="true"/>
  ...
</fields>
<types>
  ...
  <fieldtype name="shingle" class="solr.TextField">
    <analyzer>
      <tokenizer class="solr.UAX29URLEmailTokenizerFactory"/>
      ...
      <filter class="solr.ShingleFilterFactory" maxShingleSize="3"/>
    </analyzer>
  </fieldtype>
</types>

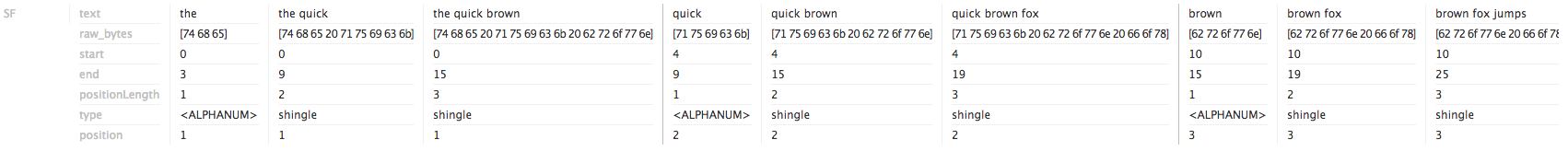

Sooo... What does the Shingle look like?

The analysis of the mention: The quick brown fox jumps over the lazy dog

How do we extract interesting keyphrases?

Configure MoreLikeThis Handler in your solrconfig.xml


<requestHandler name="/mlt" class="solr.MoreLikeThisHandler"/>

Request

http://localhost:8983/solr/query_context_terms/mlt?
	mlt.fl=exact&
	mlt.interestingTerms=details&
	mlt.mintf=2&
	mlt.minwl=3&
	mlt.mindf=1&
	mlt.boost=true&
	rows=0&
	stream.body=Brandwatch is a social media monitoring company
    headquartered in Brighton, England. Brandwatch is a software
    as a service, which archives social media data in order to provide
    companies with information and the means to track specific segments
    to analyse their brands' online presence

Response


<response>
  <lst name="responseHeader">
    <int name="status">0</int>
    <int name="QTime">21</int>
  </lst>
<result name="response" numFound="59094" start="0"/>
  <lst name="interestingTerms">
    <float name="exact:media">1.1228108</float>
    <float name="exact:social">1.1294001</float>
    <float name="exact:social media">1.2617687</float>
    <float name="exact:brandwatch">2.1803792</float>
    <float name="exact:brandwatch is">2.2959332</float>
  </lst>
</response>
DEMO!

Ontologies

Goals

  • Give me terms that are conceptually close to a given term -> word2vec
  • Show me what was the context in which the term was used by the users -> query mining

Term attributes


> db.terms.find().pretty()
{ "_id" : "mimmy", "attributes" : [ "exact" ] }
{ "_id" : "DBM", "attributes" : [ "raw" ] }
{ "_id" : "djrlcontact", "attributes" : [ "author" ] }
{ "_id" : "whotelsnyc", "attributes" : [ "exact" ] }
{
	"_id" : "kyliecosmetics",
	"attributes" : [
		"hashtags",
		"links",
		"at_mentions"
	]
}
{ "_id" : "paty_melo_", "attributes" : [ "author", "at_mentions" ] }
{ "_id" : "dremmanash", "attributes" : [ "exact", "author" ] }
{ "_id" : "vanessa_rodrgs", "attributes" : [ "author", "at_mentions" ] }

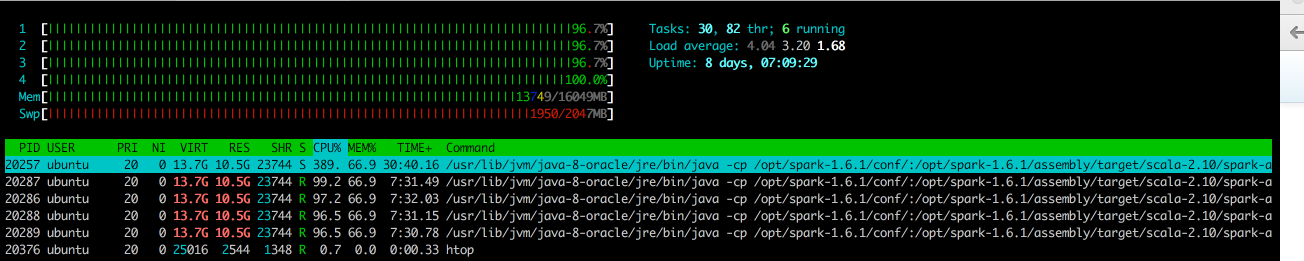

word2vec and the CPU suffering


DEMO!

Summary

  • Use the wisdom of the crowd and play with our data
  • If someone did something clever in our system, suggest it to others
  • Dev tips
    • Do simple ETL in Scala/Java instead of Spark
    • Make sure your libraries were compiled by the same Scala version (Kafka, Spark)
    • Improve query parsing
    • Extracted keyphrases very similar to each other

?


GitHub

autosuggest + keyphrases

word2vec + query mining
